BLADE UP

12,1kW/315m3

Useful Thermal Power/Heated Volume

  • Space-saving PELLET STOVES, just 34,5 cm deep
  • Cast iron combustion chamber
  • Smoke outlet O 8 cm upper, female
  • EASY TIMER function
  • RELAX function (Deactivatable hot air ventilation)
  • 2 rear hot-air duct outlets O 6 cm, Fans separate settings through remote control, or choice to fit optional room probes for the fans handling.
  • 1 ambient air fan + 1 fan for ducting
  • Pellet level sensor
  • “Mind remote” remote control
  • System The Mind Built-in WIFI
  • System Leonardo

AVAILABLE MODELS:

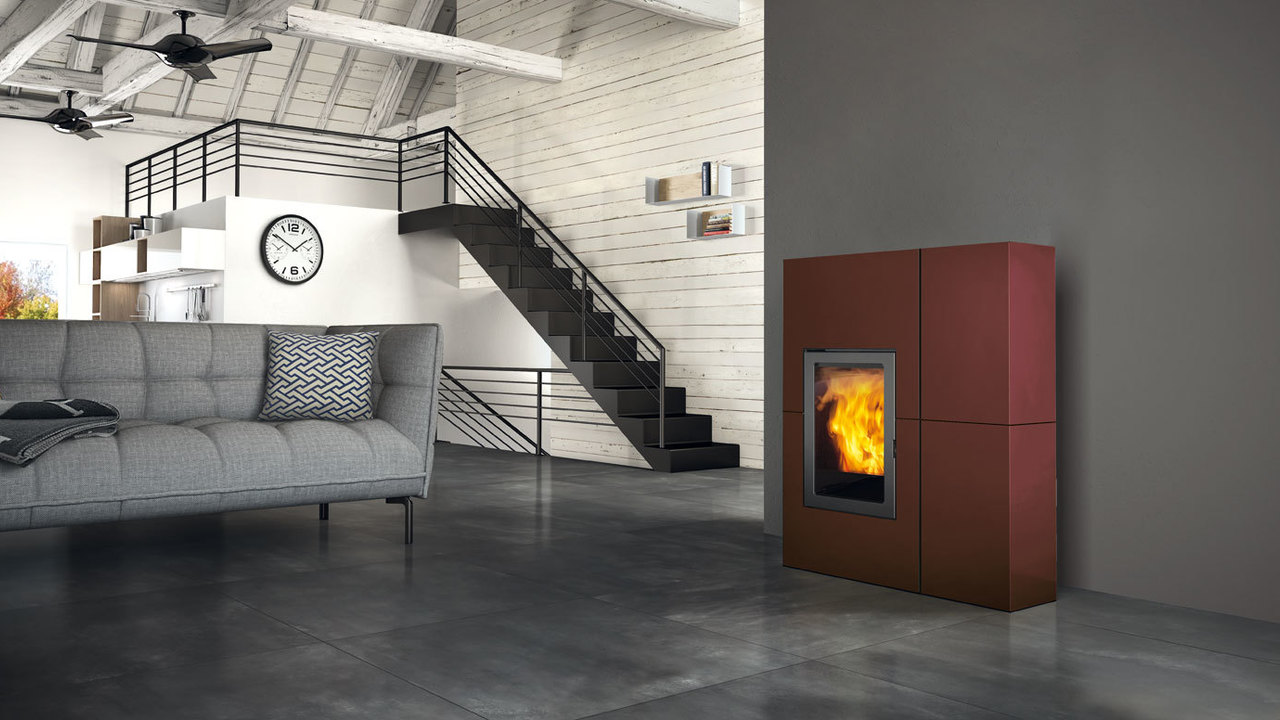

  • steel bordeaux
  • steel black

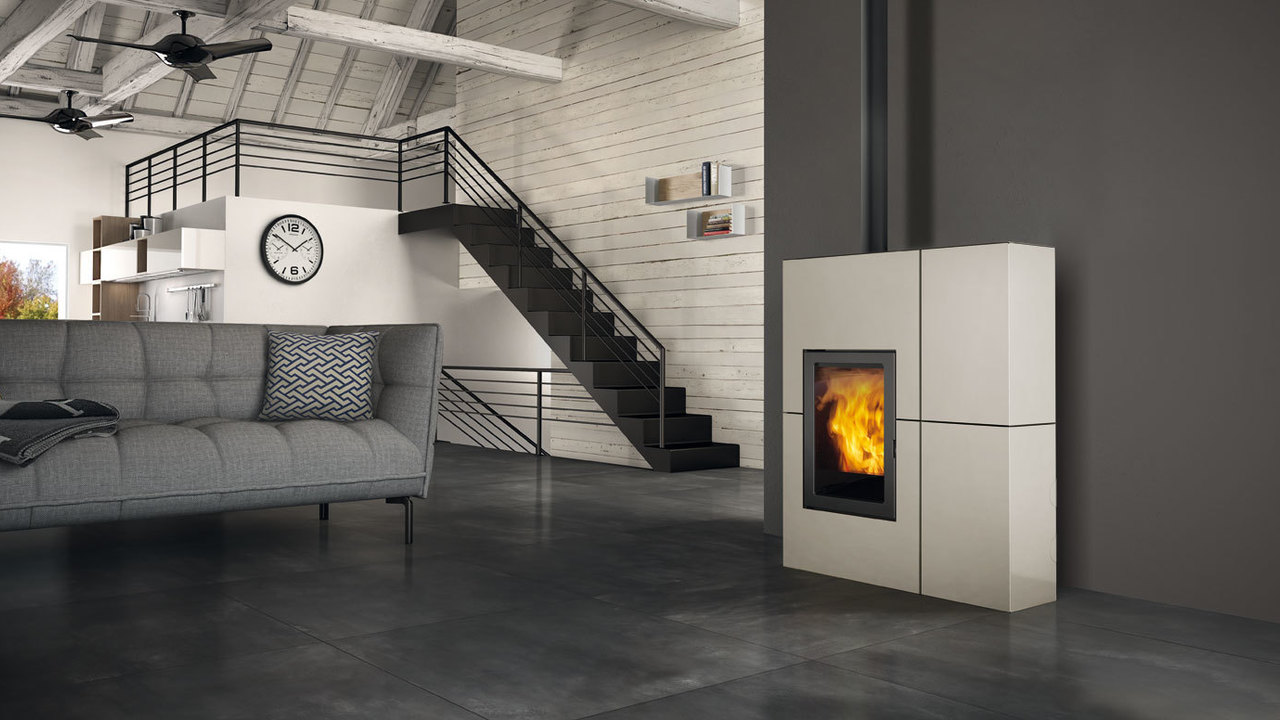

  • steel opaque white

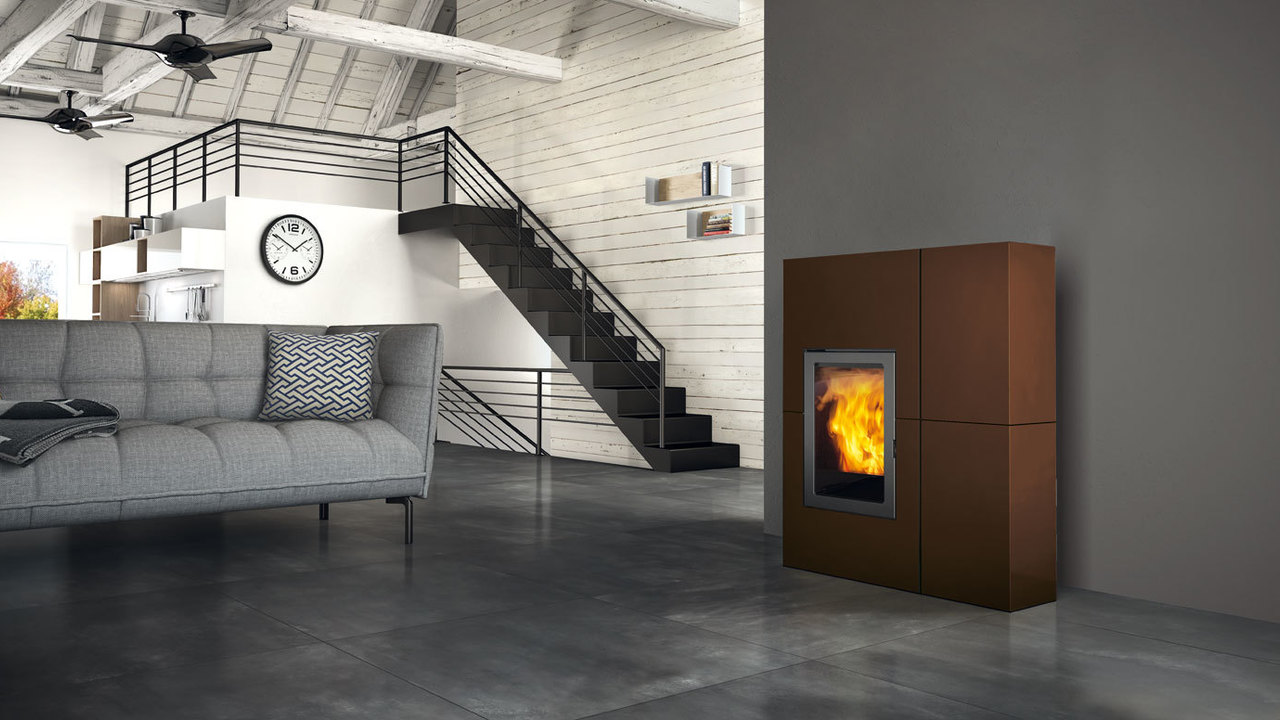

  • steel bronze

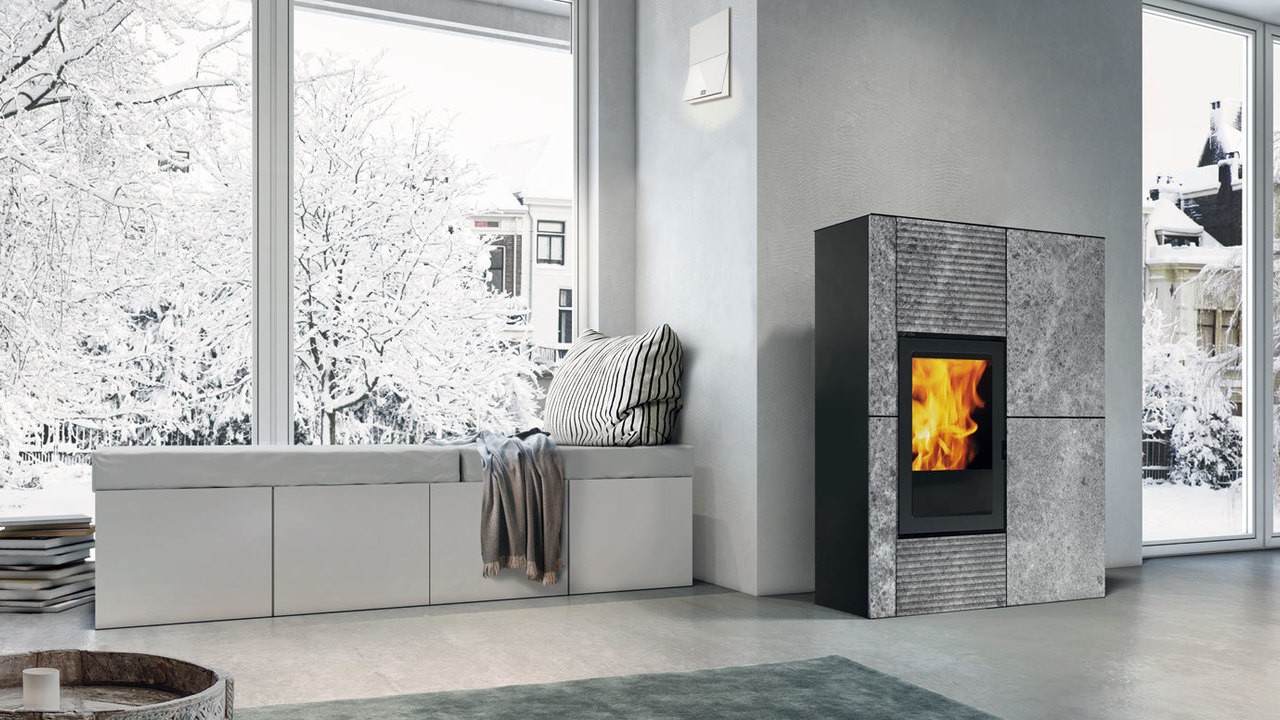

  • natural stone

Technical Characteristics

Dimensions (WxDxH) 900x345x1130mm
Weight 185kg-215kg
Heatable 315m3
Fumes outlet 80mm
Total thermal power 13,4kW
Useful thermal power 12,1kW
Efficiency 90,3%
Consumption 0,8-2,8 kg/h
Pellet Tank ~22kg

OPTIONAL
• LTE ADVANCED 4G telephone dialer
• Kit airKare
• Kit smoke outlet rear or left side
• NTC Room probe for temperature reading in ducting
• Can be combined with ducting vents SPLIT, BENT, ORIGAMI e SHARP
