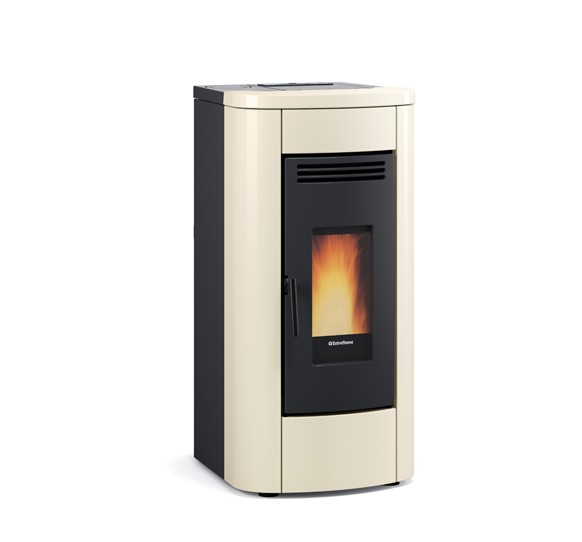

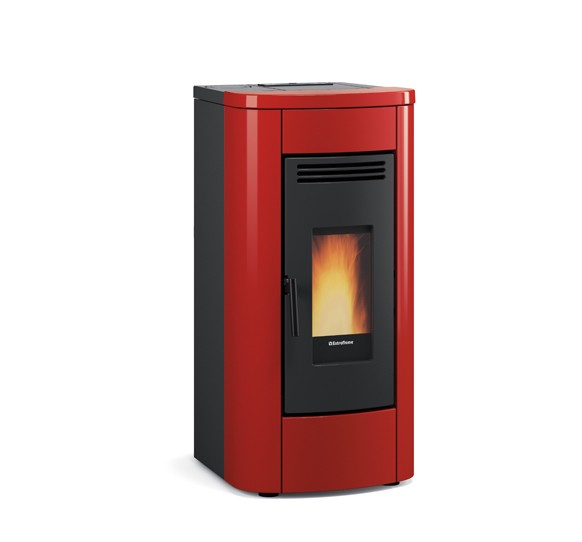

KLAUDIA PLUS

2,5-8,0kW/228m3 *

Useful thermal power/Heated Volume

Features:

  • • High temperature painted steel covering and majolica top cover
  • Extractable Ash compartment
  • Hearth, door fire and brazier in cast iron
  • Radiant surface heat exchanger
  • Hermetic tank
  • Front room ventilation with dedicated motor, with Comfort function
  • Ducting system with dedicated motor till 6 mt., thermostable
  • Ducting system output possibilities (O80 mm):rear
  • Wide fire vision
  • Ergonomic handle
  • Extractable hearth (only by authorized assistance)
  • Output smoke outlet possibilities: rear, upper

Technical Data

Dimensions (WxHxD) 497x1017x537mm
Weight 105kg
Heatable 228m3
Fumes outlet 80mm
Useful thermal power 2,5-8,0kW
Efficiency 91,3-92,5%
Consumption 0,6-1,8kg/h
Pellet tank ~15kg

* Approval undergoing model, technical data can be subject to change
