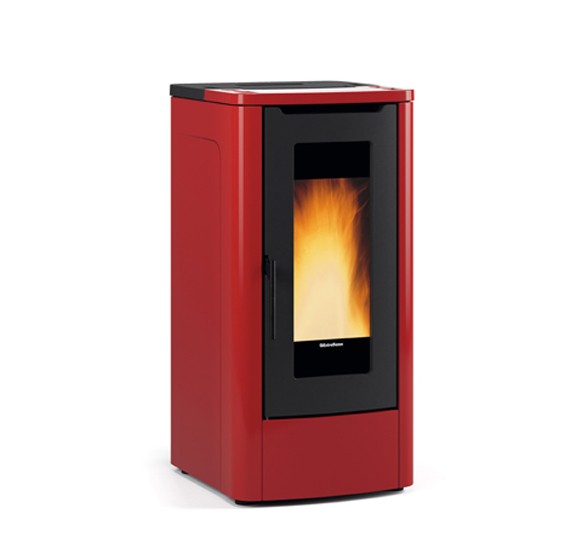

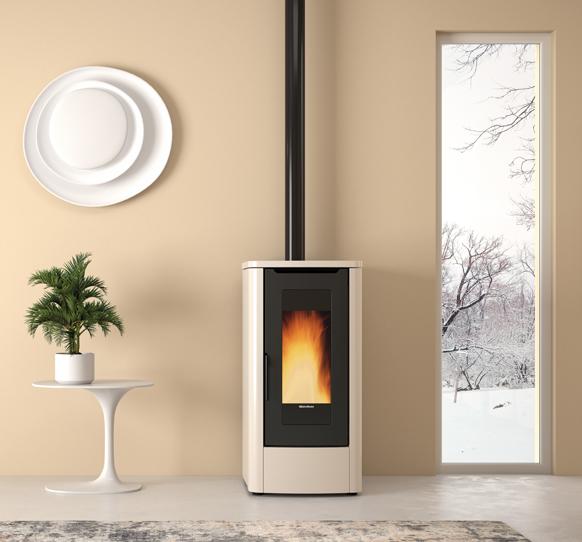

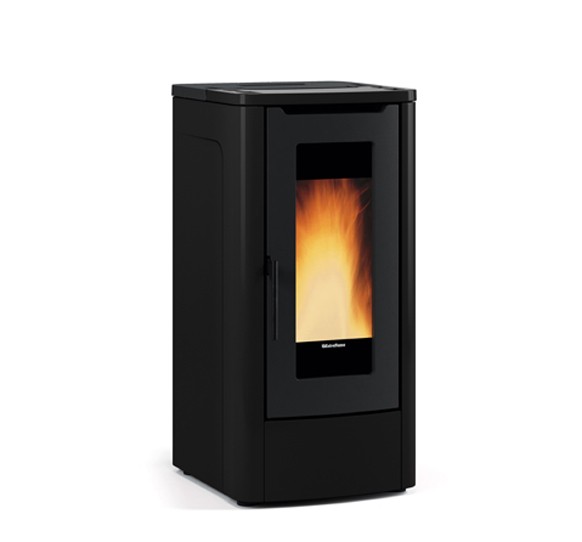

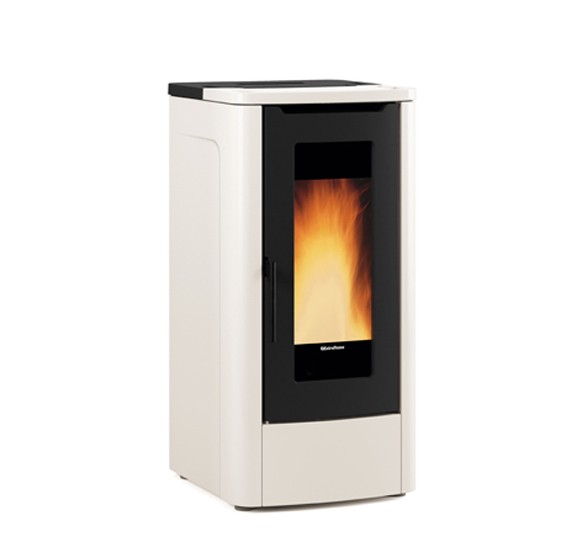

TEOREMA PLUS
12,0kW/340m3
Useful thermal power/Heated Volume
Ducted & ventilated pellet stove
Features:
- High temperature painted steel covering and majolica top cover
- Extractable Ash compartment
- High capacity pellet storage tank (kg~30)
- Hearth, door fire and brazier in cast iron
- Shell and tube exchanger
- Front room ventilation with two dedicated motors, with Comfort function
- Doble ducting system with tw o dedicated motors till 8 mt., thermostable, excludable
- Ducting system output possibilities (O80 mm): rear
- Wide fire vision
- Ergonomic handle
- Extractable hearth (only by authorized assistance)
- Output smoke outlet possibilities: rear aligned, upper aligned
Technical Data
| Dimensions (WxHxD) | 525x1080x652mm |
| Weight | 177kg |
| Heatable | 344m3 |
| Fumes outlet | 80mm |
| Draught | 3-5Pa |
| Air Inlet | 50mm |
| Ducting Outlet | 2x80mm |
| Total thermal power | 3,9-13,0kW |
| Useful thermal power | 3,5-12,0kW |
| Efficiency | >92,1% |
| Consumption | 0,8-2,7kg/h |
| Pellet tank | ~27kg |
* Approval undergoing model, technical data can be subject to change
