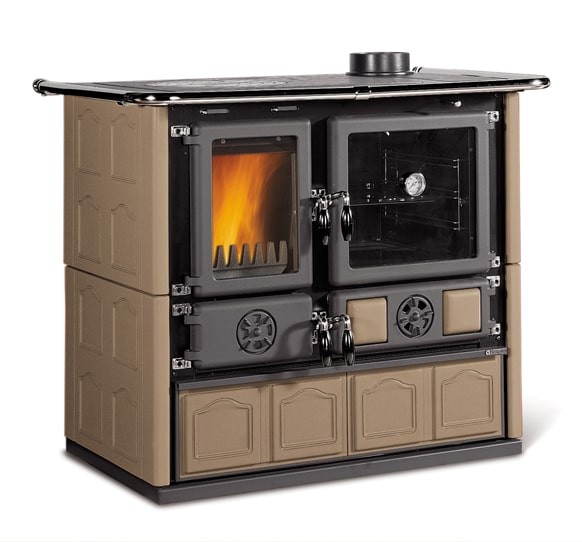

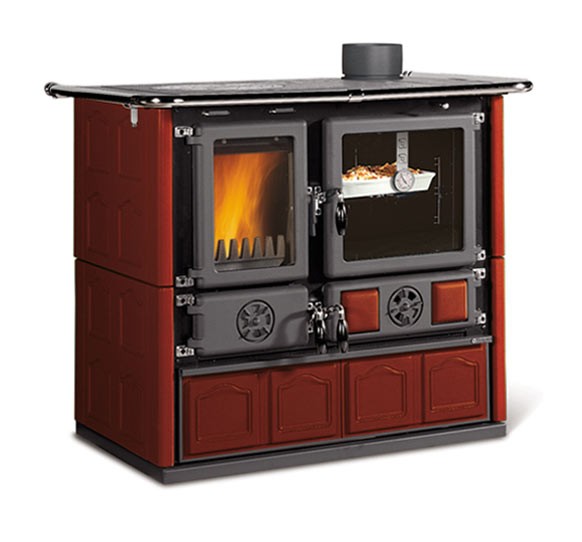

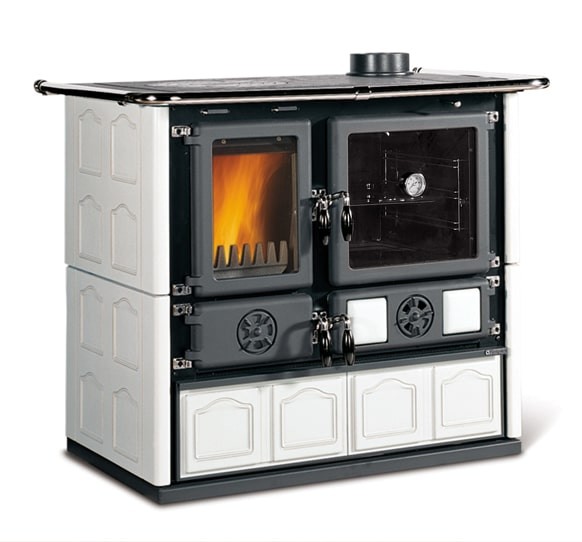

ROSA 5.0 MAIOLICA
8,8kW/252m3
Useful Thermal Power/Heated Volume
New, improved, wood-burning cooker with maiolica covering.
Characteristics:
- Extractable ash drawer
- Handmade maiolica facade in 3 colors
- Internal facing of the hearth in cast iron
- Top cooking plate and rings in polished cast-iron
- Doors and frame in enamelled cast iron
- Adjustable primary and secondary air for a better combustion control
- Post combustion system (low emissions)
- Extractable wood drawer
- Porcelain enamelled steel oven 41 l
- Ceramic glass
- Upper right or rear smoke outlet.
Technical Characteristics
| Dimensions (WxHxD) | 1030x851x650mm |
| Weight | 204kg |
| Door opening (WxH) | 349x235mm |
| Hearth dimensions (WxHxD) | 374x290x320mm |
| Oven dimensions (WxHxD) | 245x300x384mm |
| Heatable | 252m3 |
| Fumes outlet | 150mm |
| Draught | 12Pa |
| Air inlet | 120mm (optional) |
| Hearth material | Cast-Iron |
| Total thermal power | 10,3kW |
| Useful thermal power | 8,8kW |
| Efficiency | 85,4% |
| Consumption | 2,5kg/h |
The product is delivered in separate packages: body product + cladding kit.
