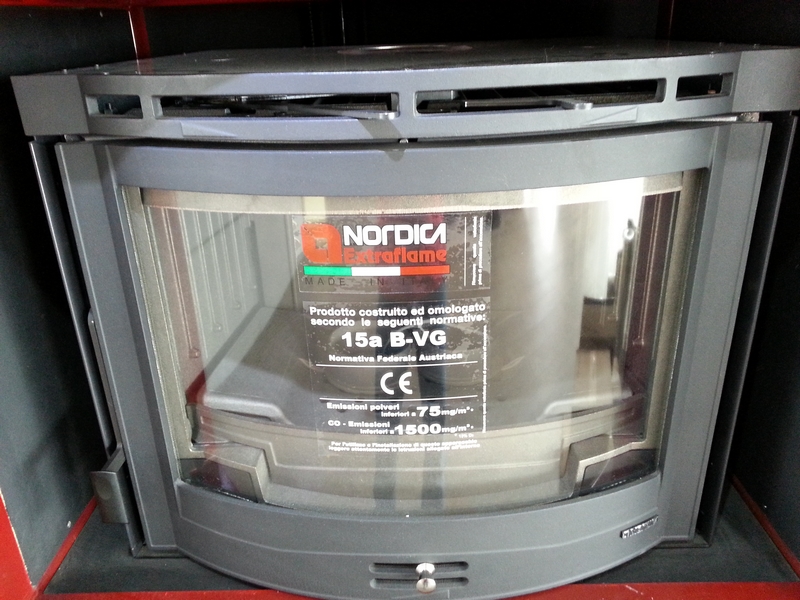

INSERTO 70 4.0 TONDO - VENTILATO
7,8kW/281m3
Useful thermal power/Heated Volume
La NORDICA-EXTRAFLAME Inserts: reliable. Practical, silent and ecological, they enable to heat wide areas in very short time.
Features:
- Extractable ash drawer

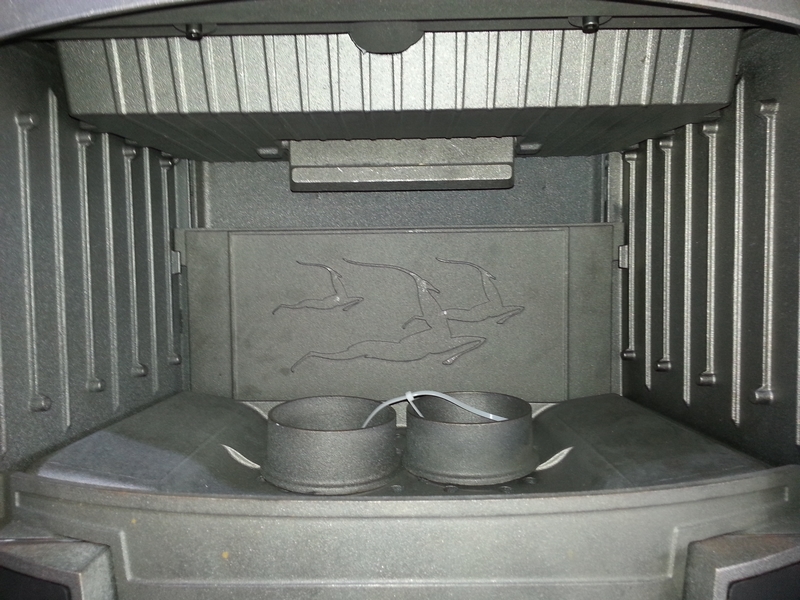

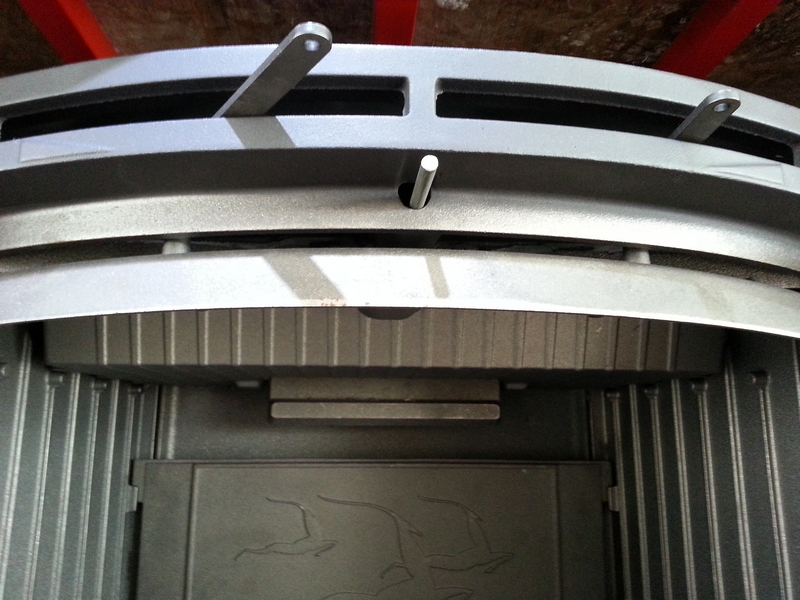

- Cast iron of 8 and 16mm

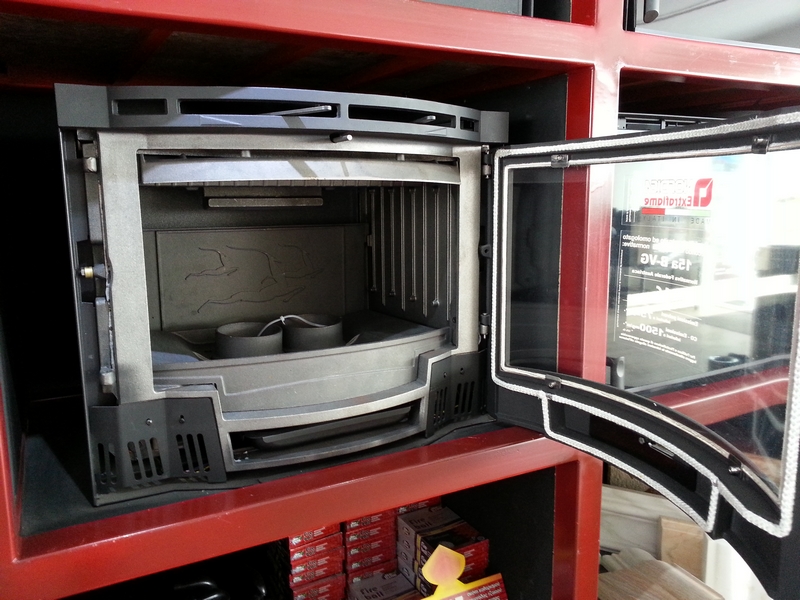

- Ceramic glass heat-resistant 750°C in a single piece
- Adjustable primary and secondary air
- Standard tangential fans
Technical Data
| Dimensions (WxHxD) | 695x550x540mm |
| Weight | 162kg |
| Door Opening (WxH) | 510x255mm |
| Hearth Dimensions (WxHxD) | 520x280x380mm |
| Heatable | 281m3 |
| Fumes Outlet | 160mm |
| Draught | 14Pa |
| Air Inlet | 120mm |
| Hearth material(s) | Cast Iron+Νordiker |
| Total Thermal Power | 12,3kW |
| Useful Thermal Power | 7,8kW |
| Efficiency | 79,1% |
| Consumption | 3,0kg/h |
