Monoblocco 800 Angolo 10,0kW

Thanks to its beautiful design, Monoblocco 800 Angolo can perfectly fit in any room. Details such as the hearth of cast-iron and ironker, the latching door, the one-piece ceramic glass, make of this built-in fireplace the ideal solution for those people who want to heat their home with a splendid furnishing component.

MONOBLOCCO 800 ANGOLO

10,0kW/287m³

Useful Thermal Power/Heated Volume

Thanks to its beautiful design, the insert Monoblocco 800 Angolo can be perfectly fit in any room. Particulars such as the hearth of cast-iron and ironker, the latching door, the one-piece ceramic glass, make of this built-in fireplace the ideal solution for those people who want to heat their home with a splendid furnishing component.

Features:

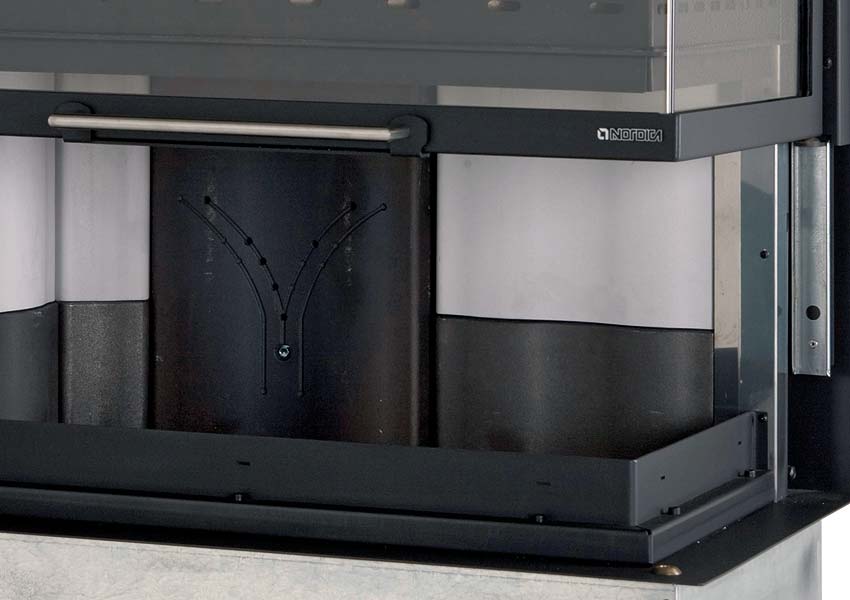

Fire floor and grid in thick G20 cast iron
Hearth top elements in Nordiker
3 mm thick special steel cape
Ceramic glass heat-resistant 750°C in a single piece

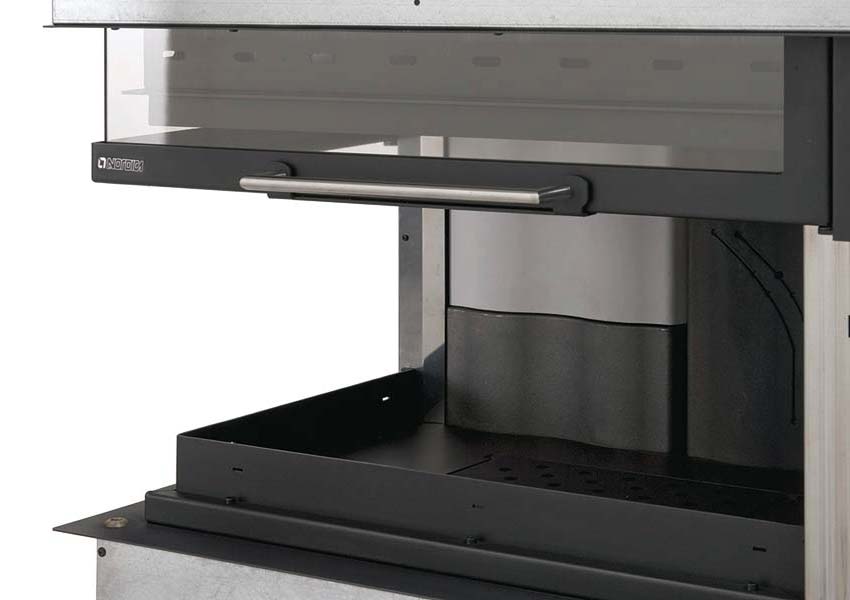

Extractable ash drawer
Adjustable primary and secondary air, preset tertiary air
Post combustion system
Ventilation optional

Technical Data

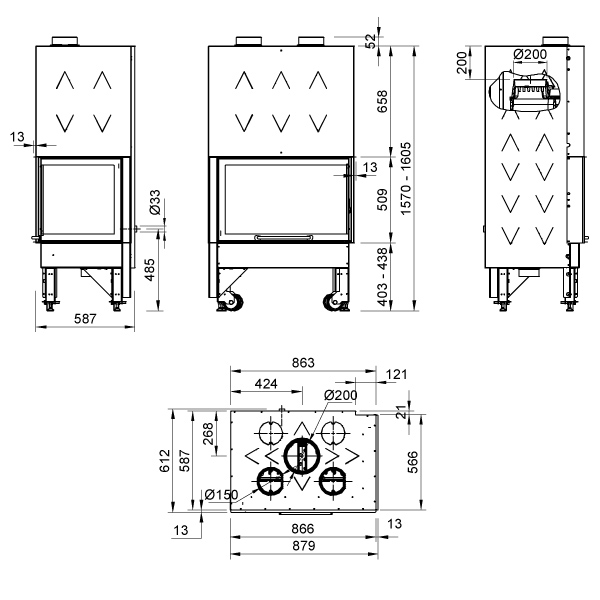

Dimensions (WxHxD)	879x1570-1605x612mm
Weight	271kg
Door opening (WxH)	698x250mm
Hearth dimensions (WxHxD)	620x676x373mm
Heatable	373m³
Fumes outlet	200mm
Draught	12Pa
Air inlet	100mm+50mm
Hearth material	CastIron+Nordiker
Total thermal power	12,4kW
Useful thermal power	10,0kW
Efficiency	80,9%
Consumption	2,9kg/h
