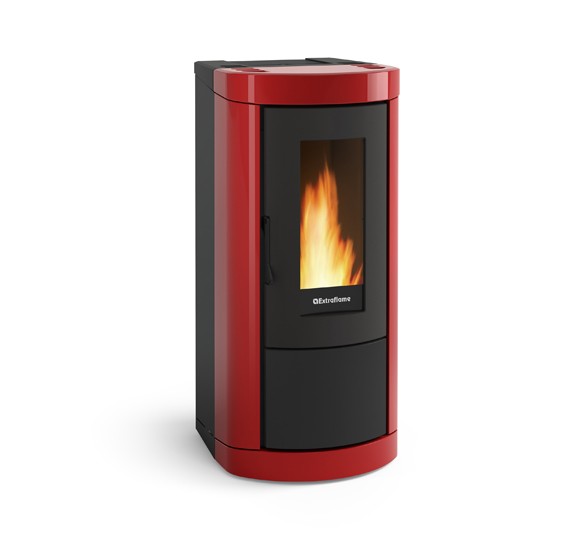

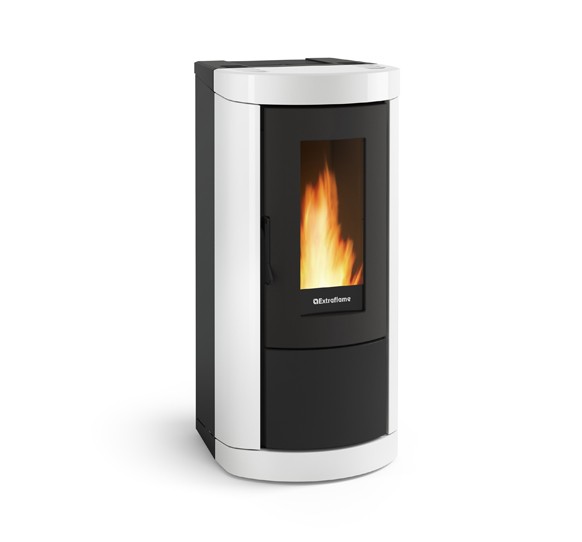

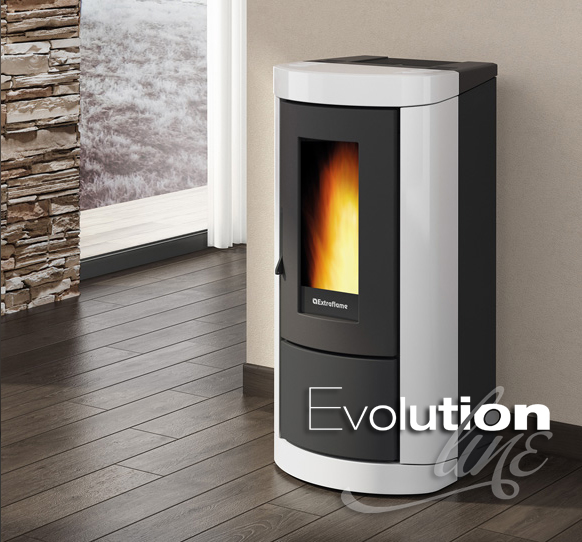

MIETTA

2,5-8,0kW/230m3

Useful thermal power/Heated Volume



Hermetic pellet stove for passive houses or low energy houses.

Features:

  • Steel top external facing in majolica
  • Ventilated stove with a "sealed chamber" and an "airtight" tank without a flow sensor on the air inlet
  • Extractable ash drawer
  • Safety pressure switch (1 tank cover + fire door)
  • Safety micro switch (ash drawer)
  • Control with multifunctional "handheld device"
  • Ceramics glow plug with the latest generation ignition system
  • Automatic brazier cleaning system with Brushless motor
  • Forced ventilation may be switched off
  • Upper side ventilation air outlet
  • Chimney compensation automatic system

Technical Data

Dimensions (WxHxD) 496x1073x578mm
Weight 159kg
Heatable 230m3
Fumes outlet 80mm
Draught 1-10Pa
Air Inlet 50mm
Total thermal power 2,6-8,8kW
Useful thermal power 2,5-8,0kW
Efficiency 91,1-93,8%
Consumption 0,5-1,8kg/h
Pellet tank ~17kg
