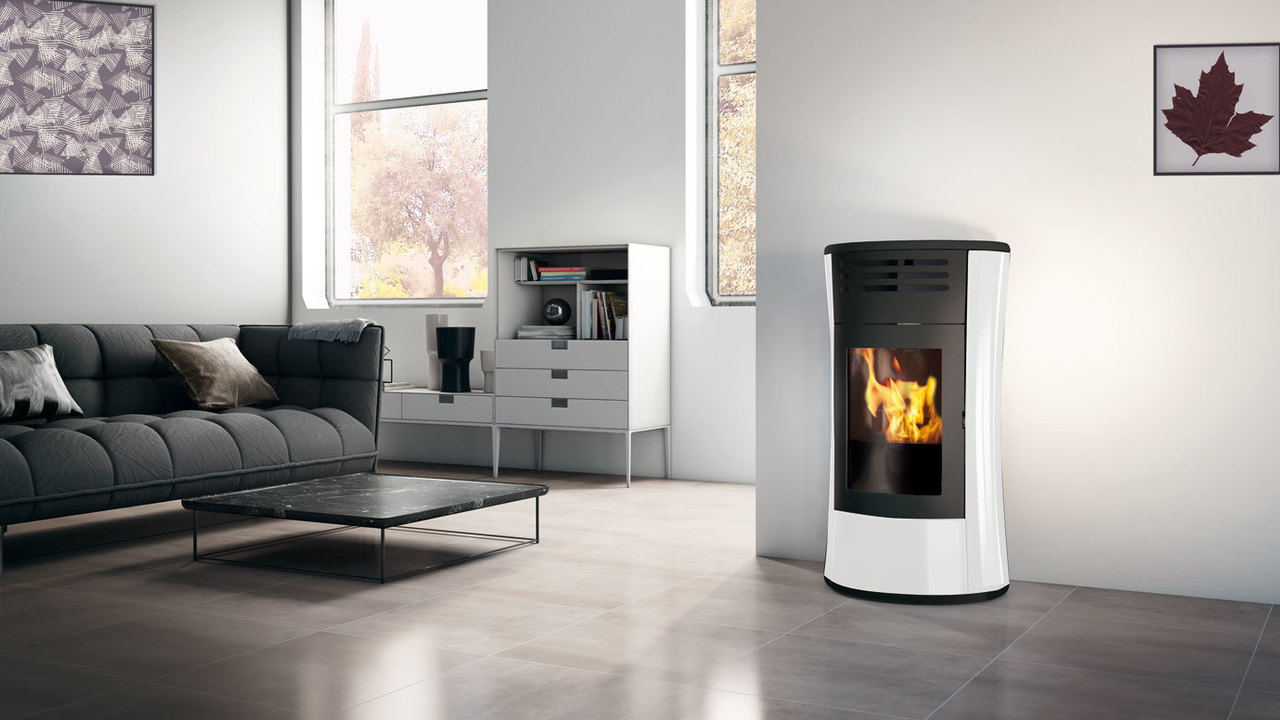

CHERIE UP H
16,2kW/420m3
Useful Thermal Power/Heated Volume
Pellet thermo-stove produce hot water to feed radiators and under floor heating panels throughout the house and they can be combined with solar panels to create a modern heating system.
With ceramic sides, top and insert color opaque white.
Produces hot air (can be deactivated) to heat the room where it is installed.
- Innovative technology: The Leonardo System detects the main parameters of combustion (type of pellet, atmospheric conditions, chimney flue conditions) to guarantee optimal operation.
- Cast iron and steel combustion chamber.
- Kit with built-in circulating pump, expansion vessel and safety valve
- Remote control with display
- hot air ventilation (modulable and deactivatable)
Technical Data
| Dimensions (WxDxH) | 620x570x1150mm |
| Weight | 230kg |
| Heatable | 420m3 |
| Fumes outlet | 80mm |
| Draught | 1-10Pa |
| Air Inlet | 60mm |
| Hydraulic Connections | 3/4" F |
| Boiler Content | 12lt |
| Total thermal power | 17,7kW |
| Useful thermal power | 16,2kW |
| Power given to water | 11,8kW |
| Efficiency | >91,6% |
| Consumption | 1,0-3,7kg/h |
| Pellet tank | ~29kg |
OPTIONAL
- Kit Wi-Fi
- GSM, allows for switching the stove on/off via mobile phone
- Produces sanitary hot water with optional accessories
- Telephone combiner for switching on and off remotely.
