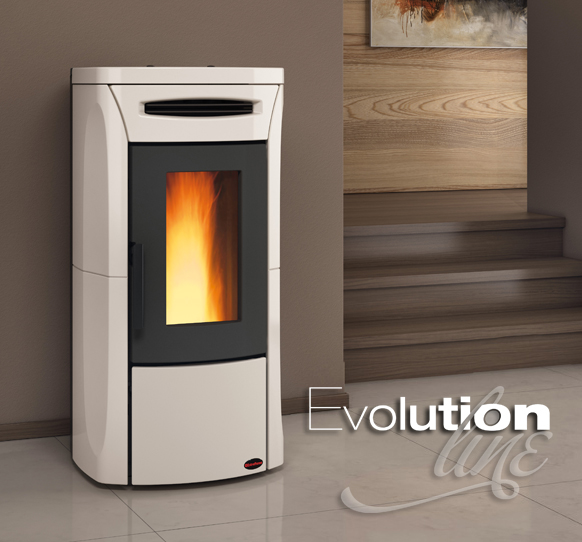

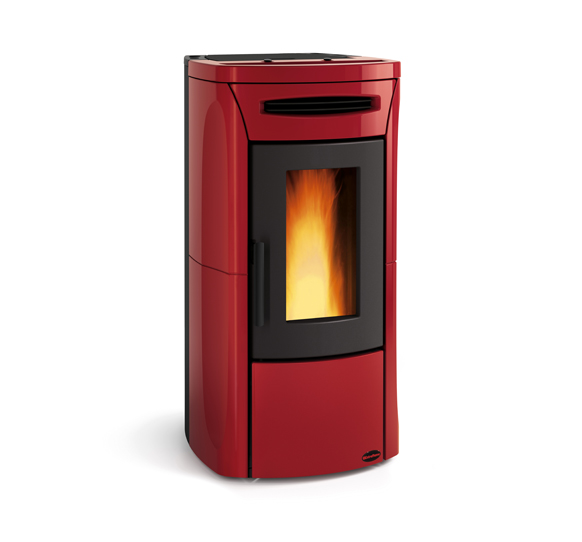

FIANDRA IDRO
4,8-17,6kW/505m3
Useful Thermal Power/Heated Volume
Hermetic pellet thermo-stove for passive houses or low energy houses.
Features:
- Majolica covering
- Thermostove with a "sealed chamber" and an "airtight" tank without a flow sensor on the air inlet
- Control with multifunctional "handheld device"
- New electronics with the possibility of connecting the system expansion card
- Ceramics glow plug with the latest generation ignition system
- High efficiency circulator with PWM control, directly from the remote control
- Combustion control with probe in combustion chamber
- Automatic brazier cleaning system with Brushless motor
- Forced ventilation totally removable
- Chimney compensation automatic system
Technical Data
Dimensions (WxHxD) | 570x1145x622mm |
Weight | 227kg |
Heatable | 505m3 |
Fumes outlet | 100mm |
Draught | 2-10Pa |
Air Inlet | 60mm |
Hydraulic Connections | 3/4" F |
Boiler Content | 16lt |
Total thermal power | 5,2-19,6kW |
Useful thermal power | 4,8-17,6kW |
Power given to water | 3,7-14,1kW |
Efficiency | >90% |
Consumption | 1,1-4,0kg/h |
Pellet tank | ~30kg |
