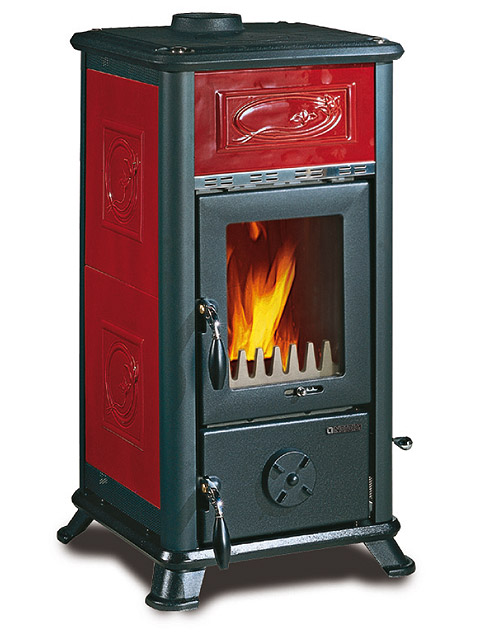

DORELLA L8 X
6,8 kW/195 m3
Useful thermal power/Heated volume

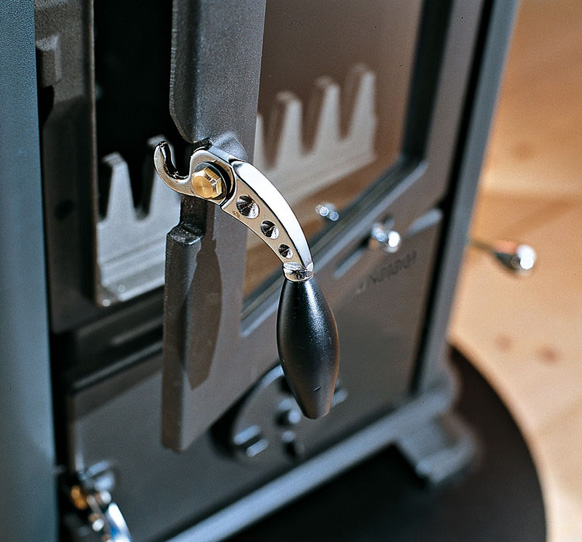

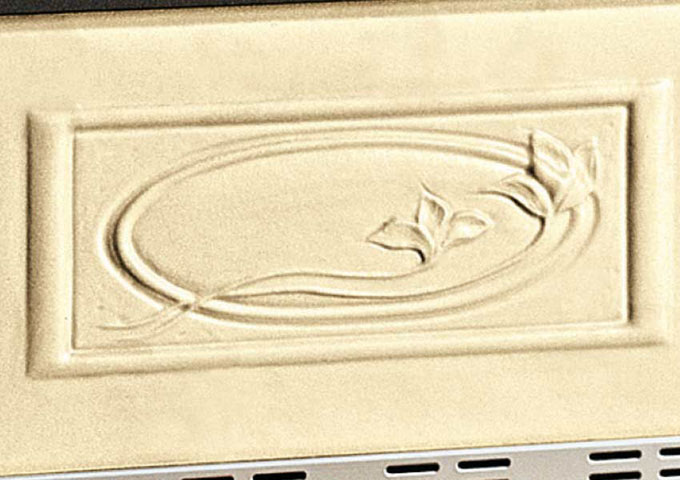

External facing in majolica or natural stone. Hearth in cast-iron. Doors and top-plate in enameled cast-iron. Ceramic glass resistant up to 750°C.
Technical Data
Dimensions (WxHxD) | 465x845x491mm |
Weight | 90/102kg |
Door opening (WxH) | 214x213mm |

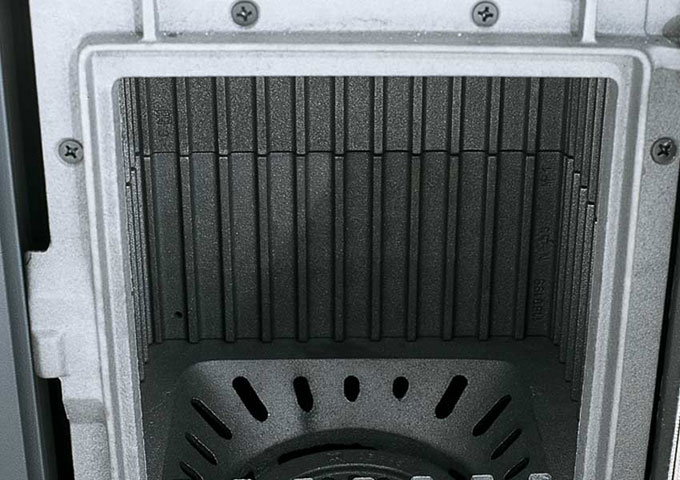

Hearth Dimensions (WxHxD) | 285x465x300mm |
Heatable | 195m3 |
Fumes outlet | 120mm |
Draught | 12Pa |
Hearth material | Cast Iron |
Total thermal power | 8,8kW |
Useful thermal power | 6,8kW |
Efficiency | 77,0% |
Consumption | 2,1kg/h |
