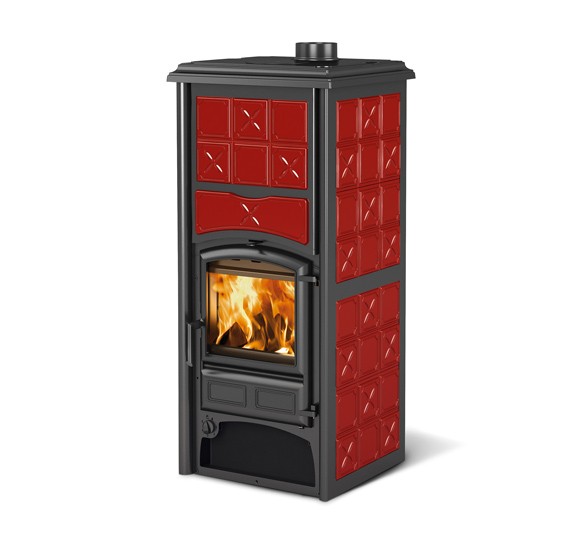

LORIET S D.S.A.
16,8kW/481m3
Useful thermal power/Heated Volume
The refined covering made of majolica with its tone relief decor and the large hearth make Loriet DSA, an elegant home furnishing set, that through a sanitary heating system, heats all the rooms with the healthy warmth produced by the wood burning. External facing in majolica. Door and plate in polished cast iron. Adjustable primary and secondary air, preset tertiary air with post combustion system. D.S.A. security device included. Ceramic glass resistant up to 750°.
Technical Data
| Dimensions (WxHxD) | 570x1258x560mm |
| Weight | 203kg |
| Door opening (WxH) | 325x223mm |
| Hearth dimensions (WxHxD) | 330x300x345mm |
| Heatable | 481m3 |
| Fumes outlet | 130mm |
| Draught | 17-20Pa |
| Air Inlet | 100mm |
| Hydraulic connections | 1" F Gas |
| Boiler Content | 50lt |
| Hearth material | Steel |
| Total thermal power | 19,1kW |
| Useful thermal power | 16,8kW |
| Power given to Water | 10,5kW |
| Efficiency | 88,0% |
| Consumption | 4,3kg/h |
| Working pressure | 3,0bar |
