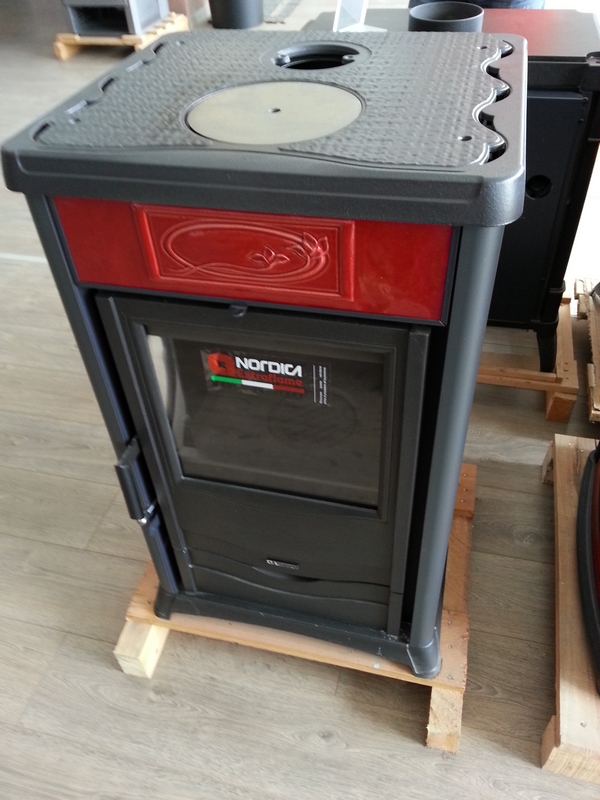

TERMOROSSELLA PLUS EVO D.S.A. 4.0

11,1kW/320m3

Useful thermal power/Heated Volume

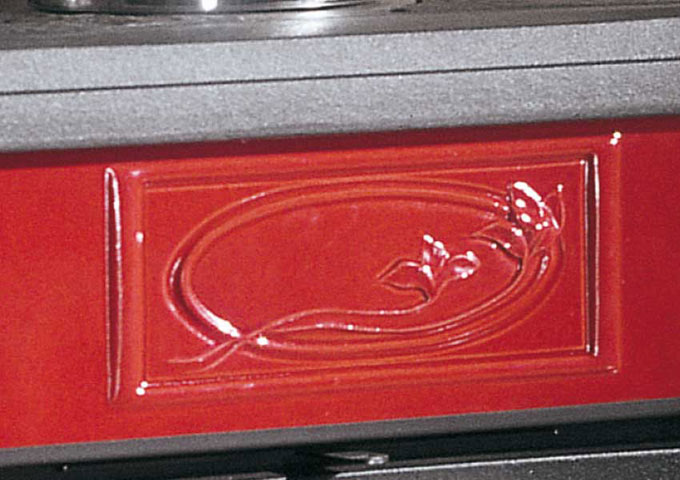

The refined covering made of soapstone or majolica with its tone relief decor and the large hearth make Thermorossella an elegant home furnishing set, that through a sanitary heating system, heats all the rooms with the healthy warmth produced by the wood burning.

Features:

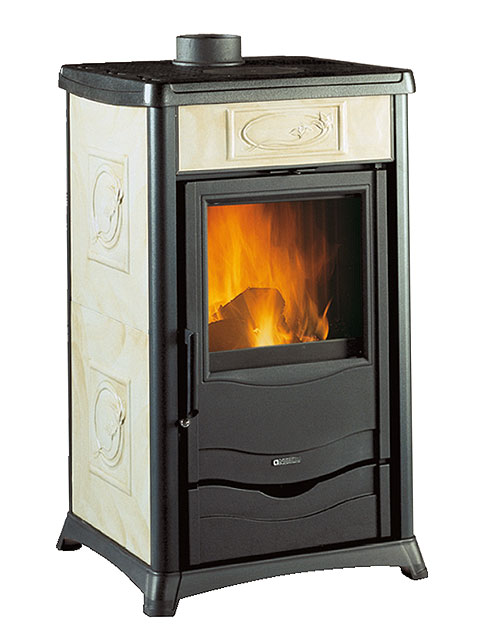

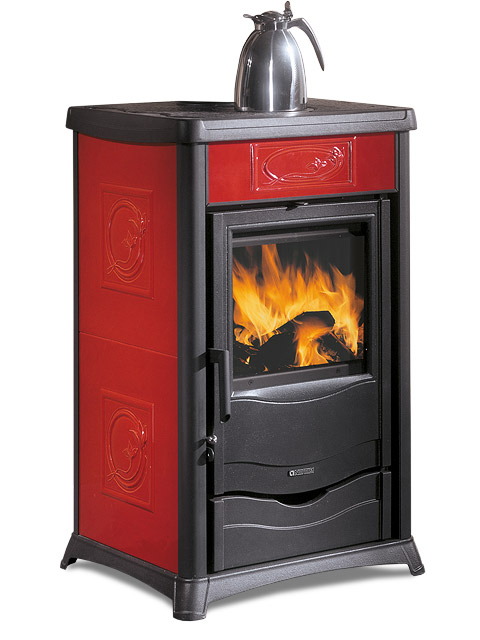

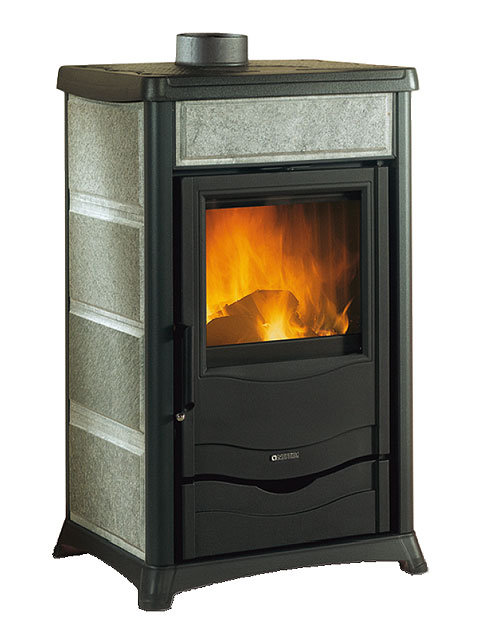

  • External facing in majolica or natural stone

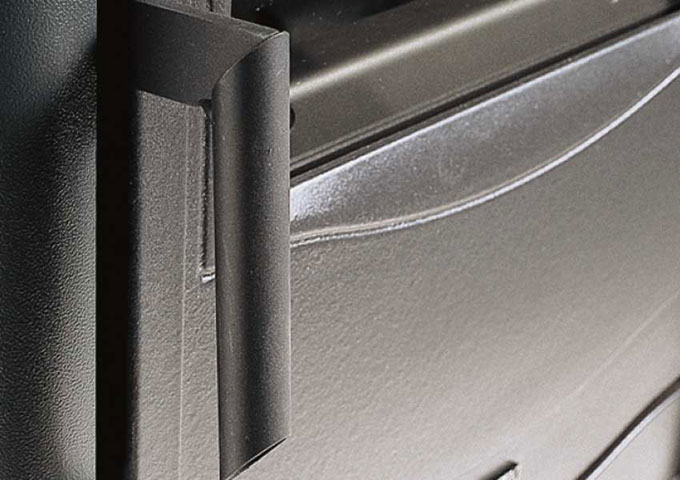

  • Door, base and top-plate in enameled cast-iron

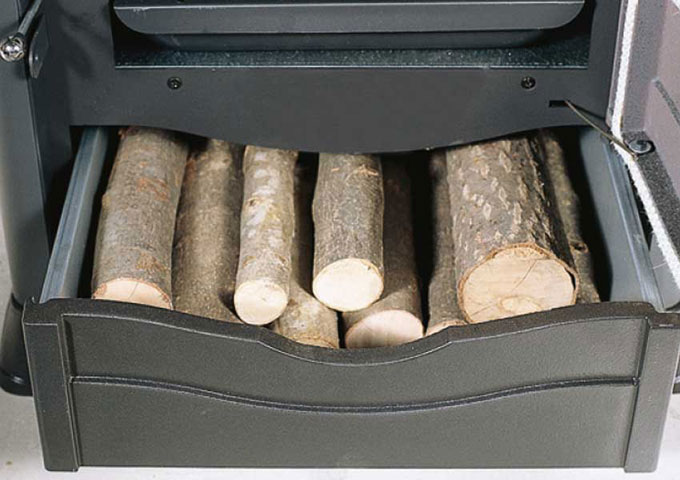

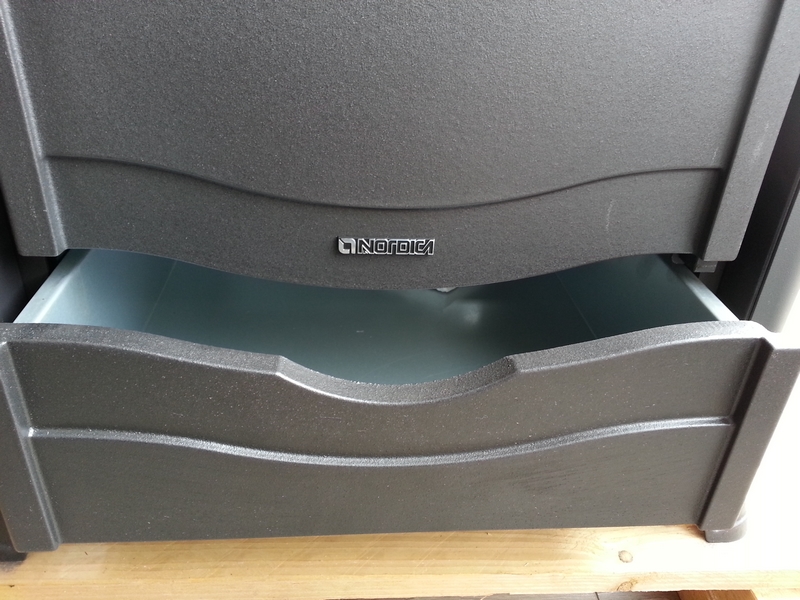

  • Extractable wood drawer

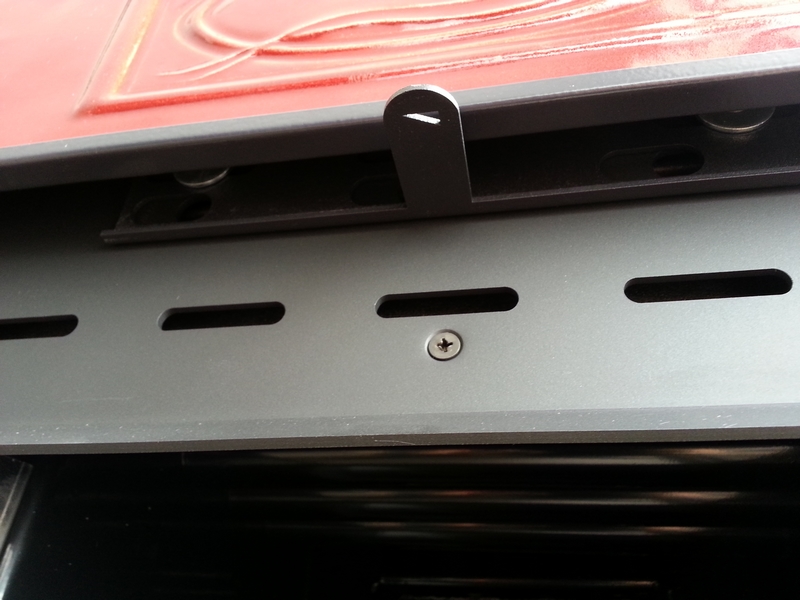

  • Adjustable primary air, preset secondary and tertiary air
  • post combustion system
  • D.S.A. Security device included
  • Ceramic glass heat-resistant 750°C
  • Ecodesign

Technical Data

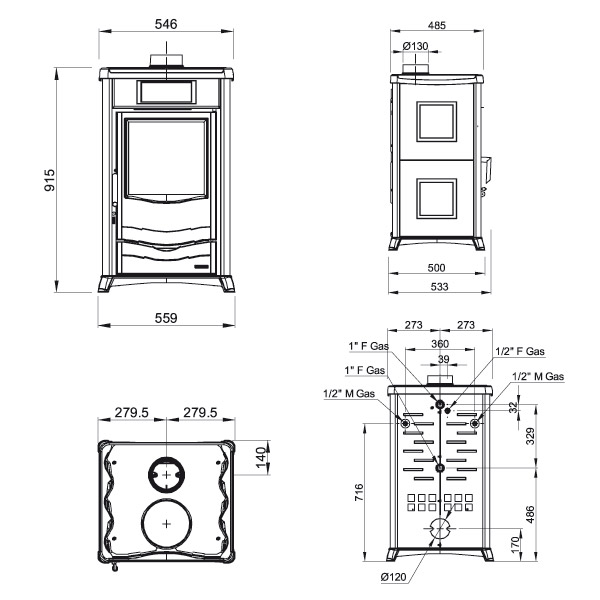

Dimensions (WxHxD) 559x915x533mm
Weight 162kg/PT:175kg
Door opening (WxH) 355x245mm
Hearth Dimensions (WxHxD) 307x245x345 mm
Heatable 320m3
Fumes outlet 130mm
Draught 17-20Pa

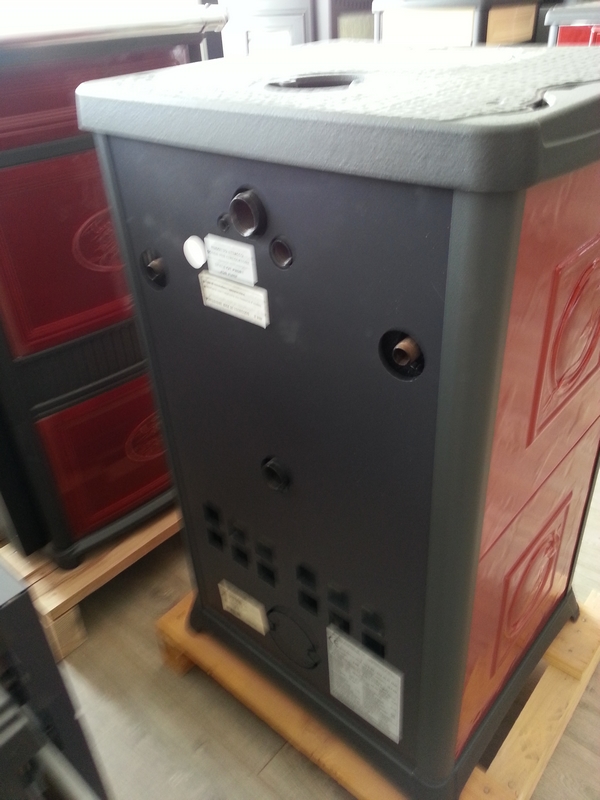

Hydraulic connections 1" F Gas
Boiler content 18,5lt
Hearth material Steel
Total thermal power 12,6kW
Useful thermal power 11,1kW
Power given to Water 8,0kW
Efficiency 88,0%
Working pressure 3,0bar
